mini mobile batching plant

mini mobile batching plant also called Small Concrete Mixing Plant made by haomei machinery has good quality and low cost. which is very suitable for short term or medium term projects to produce plastic concrete, dry hard concrete, etc. YHZS series mobile Batching plant has two different structures, one is hauling type, and the other is modular type. Hauling type mobile concrete plant adopts the semi-pulling design. Modular type mobile Batching plant adopts modular design without foundation and debugging, which enables convenient and quick installation.

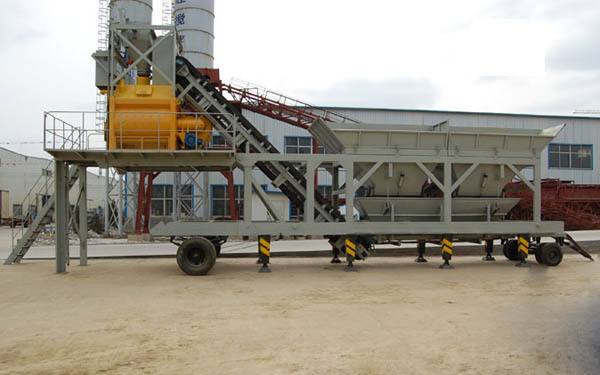

mini mobile batching plant

Features of mini mobile batching plant

mini mobile batching plant is specially designed for project with short construction time, long construction line, frequently changing construction site; mobile concrete plant is small in size, so it is also called small concrete batching plant. Our well-sold portable concrete batching plant has the following features: compact in structure, small in space needed, simple in installation, high in automation, it is widely used in the construction of bridge,building, water conservancy project, power and other infrastructure.

Models and Specifications:

Theoretical Productivity (m3/h) 25 35 50 60 90 120
Mixer JS500 JS750 JS1000 JS1000 JS1500 JS2000
Batching system PLD800 PLD1200 PLD1600 PLD1600 PLD2400 PLD3200
Discharging Height (m) 4.0 4.0 4.0 4.0 4.0 4.2
Structure Hauling Hauling Hauling Modular Modular Modular

Main Components of a mini mobile batching plant:

concrete mixer:
Adopting the horizontal double-shaft compulsory concrete mixer. It can mix the aggregates strongly,evenly and effectively. Its lubricating system is thick oil pump that can be operated manually, the shaft seal adpots mutiple seal. the external shaft bearing is used which is easy to repair and replace. The mixing blade and lining board are made of high chromium and manganese wear-resistant alloy which ensures the mixer’s performance and long service life.

concrete mixer JS2000

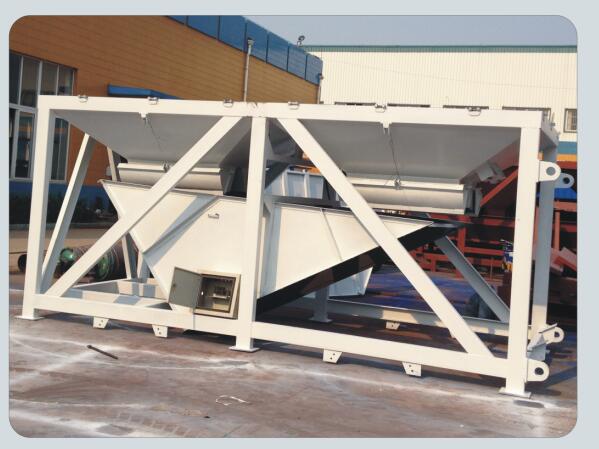

Aggregates batcher
mini mobile batching plant Aggregates batcher is kind of automatically batching equipment which can automatically finish the batching procedures of 2 一4 kinds ( Second grade concrete ) such as sand , stone , cement according to users design . This machine is used together with concrete mixer

Aggregates batcher.jpg


mini mobile batching plant comonents
